| Brand Name : | HUANSHUN |
| Model Number : | YGF153222C |
| Certification : | China Radio and Television access Card |
| Price : | Negotiable |
| Delivery Time : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram/Paypal |
Summary
With the implementation of Broadcast Whole-Optical-Network Transmission Fiber To The Home projects (FTTH), When EDFA is used as a Cascading Magnification Device in the CATV system, the C/N system will deteriorate seriously, So the EDFA should have High Saturation Output Power and Low Distortion, Then EYDFA(Erbium-Ytterbium-Doped Optical Amplifier) double cladding High Power Optical Amplifier can perfectly meet the demand of the nowadays FTTH and FTTB networks. In addition to transmitting 1550nm CATV optical signals, FTTH also requires E/GPON DATA optical signal transmission. The combined high-power optical fiber amplifier is based on EYDFA and combines FWDM devices to organically combine 1550-band CATV optical signals with 1310/1490nm PON. The DATA optical signal is combined and transmitted.

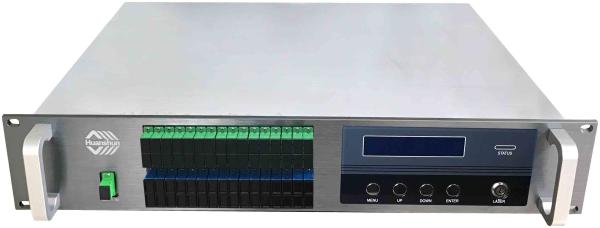

YGF15NN-XX(C) series Indoor EYDFA adopt Whole-Aluminum Box structure, Surface with Oxidation Wiredrawing finishing process; Our Pump Source parts are manufactured by World Leading Semiconductor Company: JDSU who supply us with Multi-Mode High Power Pump Lasers, Double-Clad Synthesizers are supplied by the United States OFS company. The EYDFA device is equipped with Optical Power Output Stabilization Circuit and Laser Thermoelectric Cooler to ensure stable work. Microprocessor software do monitor the Working Status of the laser, the Working Parameters are displayed by the Digital Panel (LCD). Once the Working Parameters of the laser deviate from the Software Setting Allowable Range, Microprocessor will automatically turn off the Laser Power, Red Light flashes alert, The Digital Panel indicates the cause of the failure.
Features
█ EXCELLENT QUALITY: Multi-Way High Power Pump Laser, Power is through Optimization & Balance Technology, Minimize the Noise Factor of EYDFA & comparable with general EDFA, which can make the system excellent CNR;
█ MULTI-OUTPUTS: The Maximum Synthetic Output Power is up to 1.6W~6W, Multi-Ports Output can be matched according to the user demand. Outdoor EYDFA structure size are 4×20~23, 8×18~23dBm; Indoor EYDFA structure size are 4×20~23, 8×18~23, 16×18~23, 32×18~23dBm;
█ HIGH RELIABILITY: Outdoor EYDFA use a Fully Sealed Waterproof Box, Built-in High Performance Anti Lightning Switch Power Supply, It can be working well under AC165~265V City Electricity or AC35~80V Feed. Indoor EYDFA use a Whole-Aluminum 19" Standard Box, can be directly mounted on the 19" Cabinet.
█ INTUITION: The Pump Laser is the most valuable device in the whole machine.
A Microprocessor is set up to monitor the Working State of the Pump Laser, and the Working Parameters are displayed by the LCD Panel.
█ NETWORK MANAGEMENT SYSTEM: Supporting SNMP Network Management Protocol, Telnet, HUANSHUN FTTH Integrated Network Management System.
█ FWDM INTEGRATED MODULE: Any model of Indoor EYDFA can be integrated with FWDM, Outdoor EYDFA 4&8 output can also be integrated with FWDM. When combined with GPON, EPON PON signals, Tri-Play Network Transmission appears more simple and convenient for optical network.
Performance Parameters
| Items | Units | Performance Parameters |
| Optical Working Wavelength | nm | 1535～1565 |
Input Optical Power Range Nominal Input Optical Power | dBm | -3～+10/+3 |
| MAX/MIN Warning Values | dBm | +10/+2～-10 front panel optical alarm, ≤-10 shut down |
| Noise Factor | dB | ≤5.0 (0 dBm,@1550nm) |
Output Optical Power Stability Gain Flatness | dB | ＜±0.5/＜±0.3 |
Polarization Sensitivity Polarization Mode Dispersion | dB/Ps | ＜0.2/＜0.5 |
Input/Output End Pump Leakage Power | dB | ≤-30/≤-30 |
| Optical Input and Output Reflection Loss | dB | ＞45 SC/APC (Stepped End-Face) |
| Rated Output Power | dBm | ≥Nominal Value(Details Refer to Specification Descriptions ) |
| CNR/CTB/CSO | dB | ≥49/≥63/≥63(Notes 1) |
| Power Supply/Power Voltage | V/W | Outdoor EYDFA: AC90～255 City Electricity or AC35~75Feed/25 Indoor EYDFA: AC90～255 City Electricity or DC-48V/40(Double Power Working) |
| Working/Storage Temperature | ℃ | -20~50/-30~70(Relative Temperature 5~90%) |
| Box Size | mm | Outdoor EYDFA: 530×240×160 Indoor EYDFA 2U: 482.6×465×88 Indoor EYDFA 3U: 482.6×465×132 |
Network Management Interface | / | RJ45(Follow the Network Management National Standards, and Support WEB Browser) |
| FWDM Loss | dB | ≥0.65(Model Suffix with C has this Feature) |
Notes: 1. The Optical Link Indexes are measured by Measuring Optical Transmitter and Optical Receiver Combined Testing Results. 2. Above Main Performance Indexes conform to the Technical Requirements and Measurement Methods of GY/T 184-2002 CATV Analog Optical Fiber Amplifier. | ||
Application Design
1550nm CATV&EPON Signal Integrated Single Optical Fiber To The Home
| 10km/-12point-to-point power, 64DTH design | to first level optical splitting | to second level optical splitting | to third level optical splitting | third level optical splitting to FTTH(included 0.75dB WDM loss) | ||||||
| power | connecting point loss | WDM | 5km | 4optical splitting | 3km | 4optical splitting | 1km | 4optical splitting | 1km | point-to-point power |
| CATV≧15dBm | 0.5 | 0.75 | 1.25 | 7.5 | 0.75 | 7.5 | 0.25 | 7.5 | 1 | -12dBm |
| EPON≧1dBm | 0.5 | 0.75 | 1.25 | 7.5 | 0.75 | 7.5 | 0.25 | 7.5 | 1 | -26dBm |
Description: calculated from the above table calculation can be obtained that the EPON signal with the under 64DTH, CATV each signal only need 15dBm.
1550nm CATV&GPON Signal Integrated Single Optical Fiber To The Home
| 10km/-12point-to-point power, 128DTH design | to first level optical splitting | to second level optical splitting | to third level optical splitting | third level optical splitting to FTTH(included 0.75dB WDM loss) | ||||||
| power | connecting point loss | WDM | 5km | 8optical splitting | 3km | 4optical splitting | 1km | 4optical splitting | 1km | point-to-point power |
| CATV≧18.5dBm | 0.5 | 0.75 | 1.25 | 11 | 0.75 | 7.5 | 0.25 | 7.5 | 1 | -12dBm |
| GPON≧2.5dBm | 0.5 | 0.75 | 1.25 | 11 | 0.75 | 7.5 | 0.25 | 7.5 | 1 | -28dBm |
Description: calculated from the above table calculation can be obtained that the GPON signal with the under 128DTH, CATV each signal only need 18.5dBm.
Order Info
| Product Name | Model | Functional Description |
| Outdoor WDM EYDFA | HSGF100Y-0418C-SA | outdoor waterproof structure, -5～+10dBm input, 4ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); FWDM combiner integrated, WDM loss≤1dB; dual power supply AC90~255V or AC35~75V feed, RJ45 standard network management system(support SNMP, WEB) |
| HSGF100Y-0419C-SA | ||
| HSGF100Y-0420C-SA | ||
| HSGF100Y-0421C-SA | ||
| HSGF100Y-0422C-SA | ||
| HSGF100Y-0423C-SA | ||
| HSGF100Y-0424C-SA | ||
WDM EYDFA | YGF150418C | 19’’ 1U standard cabinet, -5～+10dBm input, 4ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); FWDM combiner integrated, WDM loss≤1dB; dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB) |
| YGF150419C | ||
| YGF150420C | ||
| YGF150421C | ||
| YGF150422C | ||
| YGF150423C | ||
| YGF150424C | ||
WDM EYDFA | YGF150818C | 19’’ 1U standard cabinet, -5～+10dBm input, 8ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); FWDM combiner integrated, WDM loss≤1dB; dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB) |
| YGF150819C | ||
| YGF150820C | ||
| YGF150821C | ||
| YGF150822C | ||
| YGF150823C | ||
| YGF150824C | ||
WDM EYDFA | YGF151618C | 19’’ 2U standard cabinet, -5～+10dBm input, 16ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); FWDM combiner integrated, WDM loss≤1dB; dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB) |
| YGF151619C | ||
| YGF151620C | ||
| YGF151621C | ||
| YGF151622C | ||
| YGF151623C | ||
| YGF151624C | ||
WDM EYDFA | YGF153218C | 19’’ 2U standard cabinet, -5～+10dBm input, 16ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); FWDM combiner integrated, WDM loss≤1dB; dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB) |
| YGF153219C | ||
| YGF153220C | ||
| YGF153221C | ||
| YGF153222C | ||
| YGF153223C | ||
| YGF153224C | ||
WDM EYDFA | YGF156418C | 19’’ 3U standard cabinet, -5～+10dBm input, 16ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); FWDM combiner integrated, WDM loss≤1dB; dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB) |
| YGF156419C | ||
| YGF156420C | ||
| YGF156421C | ||
| YGF156422C | ||
| YGF156423C | ||
| YGF156424C | ||
| Optical Switch Optional | model no. suffix+K | pick one of two by optical path selection, optical switching loss ≤1dB, switching response ≤30ms |
|
|
