Summary
The dual-module FTTH terminal is a combination of an optical network unit (ONU module) and a CATV optical receiver (module). This machine adopts high-performance EPON ONU chip and low-power optical receiving technology solution.and has a dual-module structure. which can meet the gradual requirements of fiber-to-the-home services. The modular EPON ONU module unit has four 10/100Mbps Ethernet ports. the modular ultra-low optical power reception(-15~-5 dBm) has one RF 76dBuv constant output.and the main unit can be down-regulated by -4 dB and up-regulated by +6 dB. The unit also has an ONU module working status indication.a CATV light receiving signal indication and an RF output level indication on the panel.when the EPON ONU module is inserted. the network management information of the optical receiver is synthesized on the ONU. and the ONU is unified with the network management.and supports WEB. OAM.TR069 and SNMP.
Features
█ Main Host+ONU and optical receiving dual module structure. won the national invention patent. patent number ZL201510926344X.
█ The performance of the whole machine is tested by electromagnetic compatibility and safety. Obtained the national compulsory product certification (2015011608758829).
█ ONU supports EPON.10G EPON.and is compatible with mainstream OLT vendors.
█CATV module adopts ultra-low (-15dBm) optical power reception. full GaAs amplification.and light-controlled AGC76 constant output.
Technical Specifications
| Item | Unit | Performance Index | ||
| Optical Characteristics | CATV Working Wavelength | nm | 1290~1600 | |
| ONU Working Wavelength | nm | 1310.1490 | ||
| CATV Responsivity | A/W | ≥0.85 | ||
| CATV Optical Power Range | dBm | matching modul-2~-18dBm | ||
| CATV Optical Reflection Loss | dB | ≥50 | ||
| AGC Auto Adjustment range | dBm | -5~-15 | ||
| ONU Optical Receiving Sensitivity | dBm | ≥-27(EPON) | ||
| ONU Optical Transmitter Power | dBm | -1~+4(EPON) | ||
| Optical Adapter | / | TV: SC/APC.PON:SC/UPC | ||
Radio frequency characteristic | Bandwidth/Unevenness | MHz/dB | 47~1000/≤±1 | |
| Output Level | dBuv | host default output76. and can down-4.up+6dB.support WEB and network management remote level control | ||
| Return Loss | dB | ≥16(characteristic impedance 75Ω) | ||
| RF Output Port | Metric or British(1-way output) | |||
MER (closed equilibrium) | dB | ≥25(64QAM)≥31(256QAM) | -12dBm receiving.optical link 94 digital channel | |
MER (open equilibrium) | dB | ≥32(64QAM)≥34(256QAM) | ||
| BER | / | ≤1x10-4 | measure at least 100 bits | |
| CNR/CTB/CSO | dB | ≥44≥58≥58(when -9dBm/76dBuv) | ||
| Ports | User Ethernet Port | pcs | 4FE(10/100Mbps) | |
| Others | Power Supply/ Power Consumption | V/W | external AV90~255V→DC12/5 | |
| Working/Storage Temperature | ℃ | -25~55/ -35~75(humidity 10~90% non-condensing) | ||
| Structure Size | mm | 165x125x30 | ||

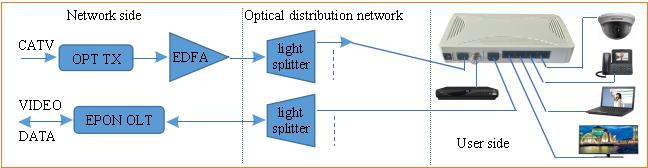

Application
Order Info
| Product Name | Model | Functional Description |
| Dual module FTTH terminal(EPON ONU.CATV) | HSOS21076-M | EPON 4FE ONU+CATV Optical Receiver.CATV-5~-15dBm/RF 76dBuv Constant Output.External 90~255V-12V 1A Power Adapter |
| EPON ONU Module | HSO1004-M | EPON 4FE ONU.plug-in structure |
| Optical Receiving Module | HSGS0076-M | CATV-5~-15dBm/RF 76dBuv Constant Output.Plug-in Structure |
|
|
