9.1 EOC Network Concentrator

Summary

EOC is the technical term of transmitting Ethernet data in coaxial cable. Active modulation EOC processes transmitting through modulation-demodulation of data, which can unvarnished transmit amplifier and branch distributor. It is also applied to star network and tree-based network as well as some special network.

CLT201/2-H and CLT201-H/Y/Y2/Y4 EOC network concentrator applies Homeplug AV standard and adopts 11” 1U case structure and all cast aluminum can on the top of EOC network which provides 1 or 2 ways EOC connection maximum to 506 CNU204-H EOC network terminal box. EOC network concentrator supports remote network management and logs in by WEB/SNMP/TELNET to concentrate management of EOC network terminal box such as QoS set, encryption set, counting, status information search, software upgrading and etc.

Features

• Occupied 7.5~65MHz low-frequency band communication, strong ant jamming capacity, high bandwidth;
• Built-in 1 or 2 ways CATV connectors, supporting 60V/6A feed or overcurrent;
• Provides 2 10/100/1000M self-adaption Ethernet ports, uses to connect uplink ONU or Ethernet cascade;
• 201 device supports MAC 350Mbps, 202 device supports 2 MAC 350Mbps;

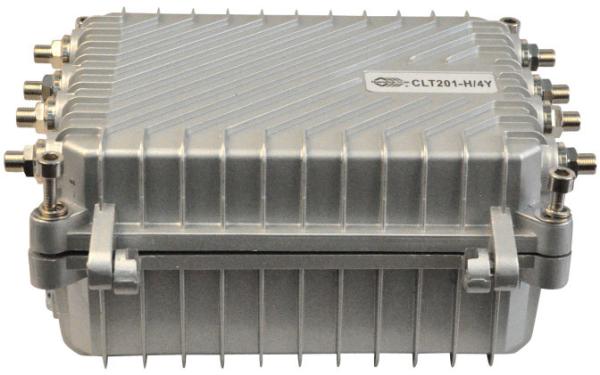

• Field device in aluminum box with many edges, effectively protecting water and cooling, then increases product reliability;
• Indoor device in 11” 1U iron box, operating platform lays or hanging or with hangers supporting 19” standard rack mounting.

Technical Specifications

Application:

Order Info

Company Profile

Founded in 1988, Zhejiang Huanshun Network Technology Co., Ltd. is located in Yuyao, the birthplace of seven thousand years of ancient culture, and has the reputation of “Plastic Kingdom” and “Hometown of Moulds”. The registered capital is eight million dollars and the paid-in capital is five million dollars, more than 100 employees. At the beginning of the company's establishment, it was positioned as a photoelectric transmission equipment. Optical transmitters, optical receivers and optical amplifiers are the main products of the company. With the digital transformation of cable television transmission, two-way transformation and the advancement of the construction of next-generation broadcasting and television networks, the company main products are continuously upgraded and continuously innovated. The new generation of FTTH products are high-power multi-output (4-64 channels), FWDM fiber amplifiers, WDM type, 1550 filter type ultra-low optical power receiver, FTTH ONU (WIFI) + CATV reception. Dual fiber&single fiber (WDM) optical terminal, FTTH ONU or WIFI E/GPON optical terminal, EPON OLT + EYDFA field passive optical fiber access central office.

Factory workshop area: 8,000 square meters Safety: three levels of safety production standardization and environmental protection facilities: ISO 14001 environmental management system certification.

Office building scale: The total number of office staff is about 40, including design and development, sales, finance, production management personnel, etc. Area: 2,640 square meters

As a company with independent research and development, production and sales, it has gathered a large number of experienced professional technical teams and management teams to lay a solid foundation for the company's development. Since 1990, the company has obtained ISO9001, ISO14001, ISO18001, 3C certification, and has obtained 13 national patents, 10 national computer software copyrights, 18 national industry product network access licenses, and provincial high-tech. enterprise.

Adhering to the core values of “gratefulness, innovation, pragmatism and mutual benefit”, the company is committed to becoming a cable network integrated service solution provider and building the first brand of cable TV access network application services. In the future, we will promote the smart community, smart retirement and smart healthcare, and build a smart community service system that is sufficient for wired networks.

"Concentrating on Providing Competitive Equipments, HUANSHUN Servies You Continuously" is the company's business philosophy. "Sincerely returning to the society and making good products" is the common vision of generation after generation.
