    HSO1004-E FTTH ONU , Gigabit Industrial EPON ONU AC155 ~ 255V

    Ask Lasest Price
    Brand Name : HUANSHUN
    Model Number : HSO1004-E
    Certification : China Telecom and CCC Certification
    Price : Negotiable
    Delivery Time : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram/Paypal
    • Product Details
    • Company Profile

    HSO1004-E FTTH ONU , Gigabit Industrial EPON ONU AC155 ~ 255V


    Summary


    HSO1004-E is a 4-port Gigabit industrial-grade intelligent ONU terminal product for smart city and safe city projects. It can work normally at -20~70°C. The product complies with the IEEE 802.3ah international standard, the People's Republic of China communication industry standard(YD/T1475-2006), and China's good interoperability and operability, enabling interconnection with the industry's mainstream OLT equipment.


    Features


    ■ Superior Access Performance: Supports uplink and downlink symmetric 1Gbps PON transmission rate, which can achieve split ratio of up to 1:64, network coverage radius up to 20KM; truly reflects the high bandwidth, high user access and long PON communication, superior access capability for distance;

    ■ Secure Service Bearer Capability: Supports technologies such as VLAN, spanning tree, port isolation, ACL, QoS, security filtering, storm control, etc., so that the ONU product has a secure service carrying capacity;

    ■ Refined Service Control Capabilities: support DBA and Rate-Limit functions, advanced dynamic bandwidth allocation mechanism and accurate bandwidth limitation, enabling all users to share 1Gbps bandwidth resources more reasonably; support QOS functions and achieve reliable quality of service to ensure service priority and quality of service for different services in the network;

    ■ Rich OAM Function: Supports standard OAM and extended OAM defined by China Telecom CTC2.1/3.0, including configuration, alarm, performance monitoring, fault isolation and security management;

    ■ Perfect Interconnection and Interoperability: product complies with the IEEE802.3ah international standard and the People's Republic of China communication industry standard(YD/T 1475-2006), which meets the latest requirements of China Telecom CTC2.1/3.0, and can easily implement mainstream manufacturers. The interconnection and intercommunication of standard OLT devices and hybrid networking minimize network construction costs;

    ■ Wide Operating Temperature: Supports normal operation in -20~+70 degrees environment.


    Technical Specifications


    ItemUnitPerformance Index
    User InterfacesPcs4-RJ45, 10/100/1000Mbps adaptive
    Structure Sizemm148×115×28, iron shell
    PON PortPcs1-PON, Uplink and downlink symmetrical 1Gbps transmission rate Network coverage radius: 20km optical interface type: SC/PC high sensitivity optical receiver: -27dBm or less illuminating power: 0-4dBm
    Working/Storage Temperature-20~70/-40~85
    Working/Storage Humidity%5~90(No Condensation)
    Power Supply/Power ConsumptionV/WPower Adapter AC155~255V→DC12(1A)/≤8
    Software Features/

    Supports Layer 2 switching capability; Layer 2 isolation of the user-side Ethernet interface is enabled by default; User-side Ethernet interface supports Fast Spanning Tree Protocol (RSTP) required by IEEE 802.1D; ACL function is supported, filtering specific data frames by ACL calls;

    The user-side Ethernet interface supports the IEEE 802.3x flow control protocol in full-duplex mode. Its related functions should be configurable. It supports IEEE 802.1Q protocol, supports VLAN division for user physical ports, supports VLAN tagging/de-marking, and VLAN transparent transmission. , VLAN Translation, VLAN priority marking, VLAN filtering and other functions;

    Support DBA dynamic bandwidth allocation function; Support user-side Ethernet interface bandwidth rate limiting function rate-limit; Support port mirroring function;

    Support QOS function, can achieve SP and WRR priority scheduling;

    Supports the dynamic controllable multicast function defined by the igmp-snooping and CTC functions of the Layer 2 multicast function;

    Support port loop detection; support power-down alarm function dying-gasp

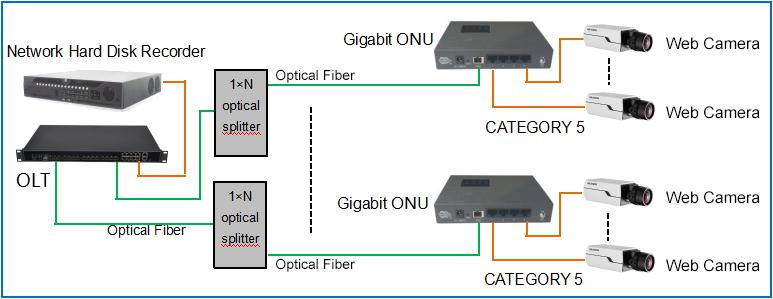

    Application


    Order Info


    Product NameModelFunctional Description
    Gigabit Industrial EPON ONUHSO1004-EIron Structure, EPON 4GE, support range at -20~+70 degree environment working normally; External 90~255V-12V 1A Power Adapter
    Advantage:
    Our company's products are ahead of the industry in terms of technology. When the company has not yet entered some products, our company has obtained the network access certificate for the corresponding products.
